Ktag Reads Citroen C5 2008 Marelli IAW 6LP on boot

This is IAW 6LPB Magneti Marelli Bench Flashing with a Ktag master ecu programmer in Boot Mode.
Citroen C5 bench flashing – STF10280 boot mode
ktag-read-Marelli-IAW-6LP-1

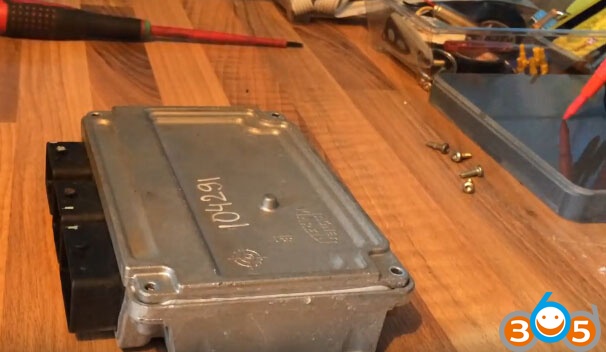

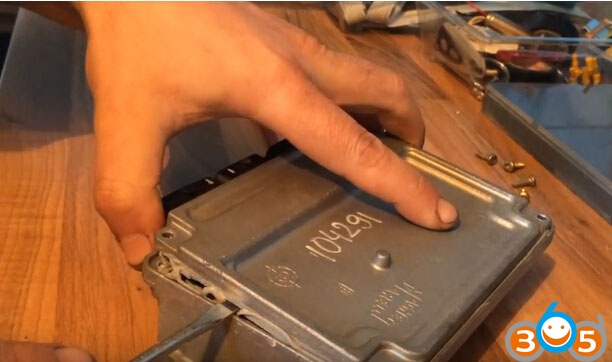

Disassemble the ECU
ktag-read-Marelli-IAW-6LP-2
ktag-read-Marelli-IAW-6LP-3
ktag-read-Marelli-IAW-6LP-4
ktag-read-Marelli-IAW-6LP-5
ktag-read-Marelli-IAW-6LP-6
Select the model
ktag-read-Marelli-IAW-6LP-7
Manufacturer: Citroen
Model: C5 (II)
Version: 2000 16v
Type: RFJ (EW10A)
KW: 103
HP: 140
Fuel: Petrol
MY: 2008
ECU: Magneti Marelli IAW 6LP
Mode: BOOT ST
FAM: 45
CHK: √
RO: √
Connection instruction
ktag-read-Marelli-IAW-6LP-8
ktag-read-Marelli-IAW-6LP-9
ktag-read-Marelli-IAW-6LP-10
ktag-read-Marelli-IAW-6LP-11
ktag-read-Marelli-IAW-6LP-12
ktag-read-Marelli-IAW-6LP-13
So, the connection mode of Magneti Marelli IAW 6LPB is like what displayed in the Galletto Manual Type B, but use KTag BOOT PIN connection
ktag-read-Marelli-IAW-6LP-14
ktag-read-Marelli-IAW-6LP-15
ktag-read-Marelli-IAW-6LP-16
ktag-read-Marelli-IAW-6LP-17
Connected to CAN High and CAN Low, but CAN protocol not woek
Connect ed through K Line
ktag-read-Marelli-IAW-6LP-18
ktag-read-Marelli-IAW-6LP-19
ktag-read-Marelli-IAW-6LP-20
K-Tag is reading Marelli IAW 6LP1.49 PSA
ktag-read-Marelli-IAW-6LP-21
ktag-read-Marelli-IAW-6LP-22
ktag-read-Marelli-IAW-6LP-23
ktag-read-Marelli-IAW-6LP-24

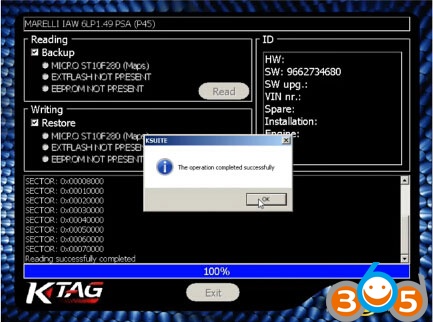

Ktag master reads Marelli successfully
Save ECU data
ktag-read-Marelli-IAW-6LP-25
ktag-read-Marelli-IAW-6LP-26
Exit Ktag Ksuite software.
