Benz All Series EIS EZS Table Connection Wiring Diagram

Here are all Mercedes-Benz EIS/EZS pinouts for table connection and test.  Just for sharing purpose, credit to DK forum member volism .
W169 W211 W209
w169-211-209
W202 W208 W210
202-208-210
W203 W463 W639
203-w463-w639
W204 W207 W212
204-207-212
W212 new, W246 W166 EZS
w212-w246-w166
W215 W220 W230
w215-220-230
W221 new type
w221
W221 old type
w221-old
W639 new
w639-new
W906
w906
W164 NEC new
w164-nec-new

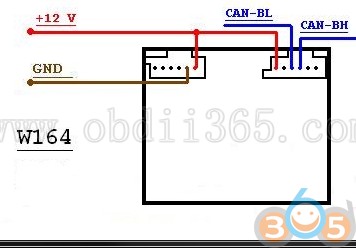

W164 NEC Old
w164-nec-old
W166 W246
w166-w246

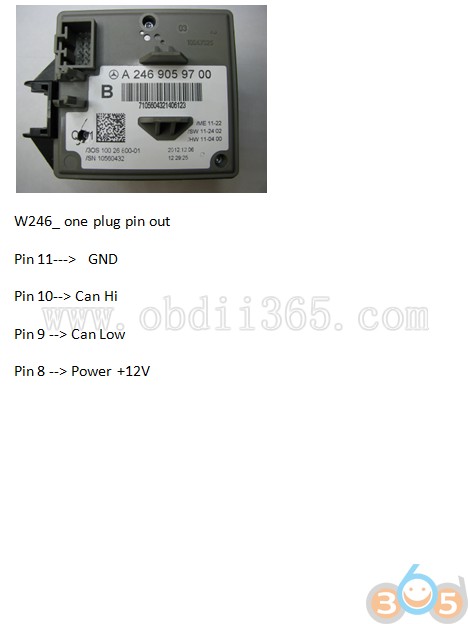

W246 one plug
w246-one-plug
