Kess V2 Delete Fiat Ducato III DPF and EGR value

Today flashing the engine control unit on the Fiat Ducato III 2013Y 2.3L MT EDC16C39.
It was necessary to turn off the EGR valve (it will shut up, a lot of soot in the intake manifold), DPF diesel particulate filter (to be cut), and of course, a fine tuning by itself)
We will need the KESS V2 Master programmer clone or origianl.

(Disclaimer: The tutorial was translated from Russian. You are at your risk. Click to enlarge all images)

Go.
Launch KSuite :

kessv-2-fiat-ducato-delete-dpf-egr-1

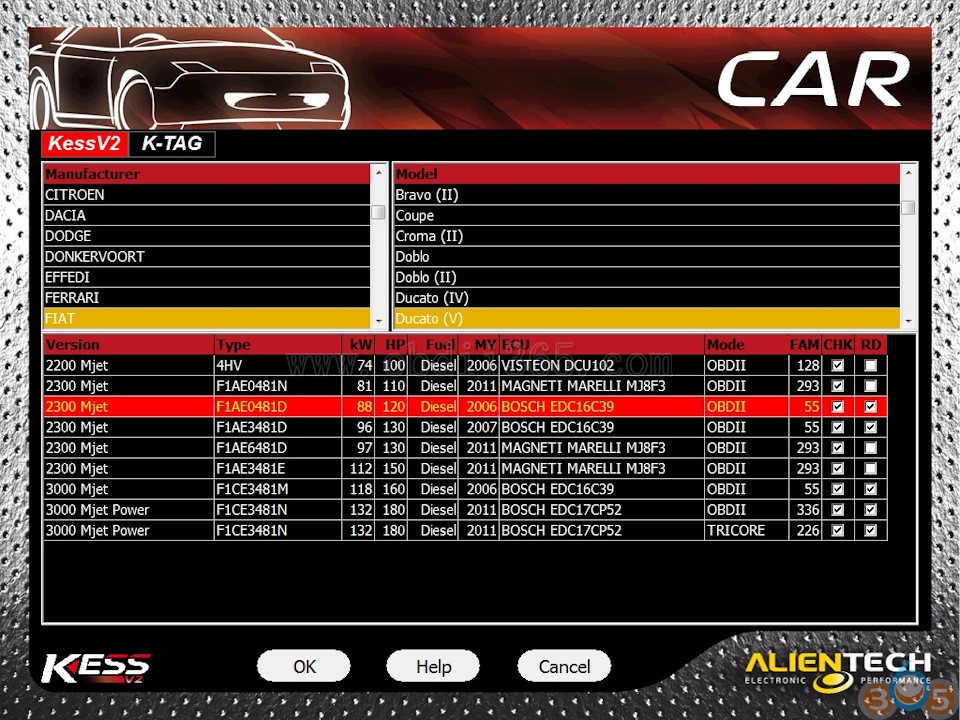

Choose a Fiat Ducato with the specified EDC16c39 control unit :

kessv-2-fiat-ducato-delete-dpf-egr-2

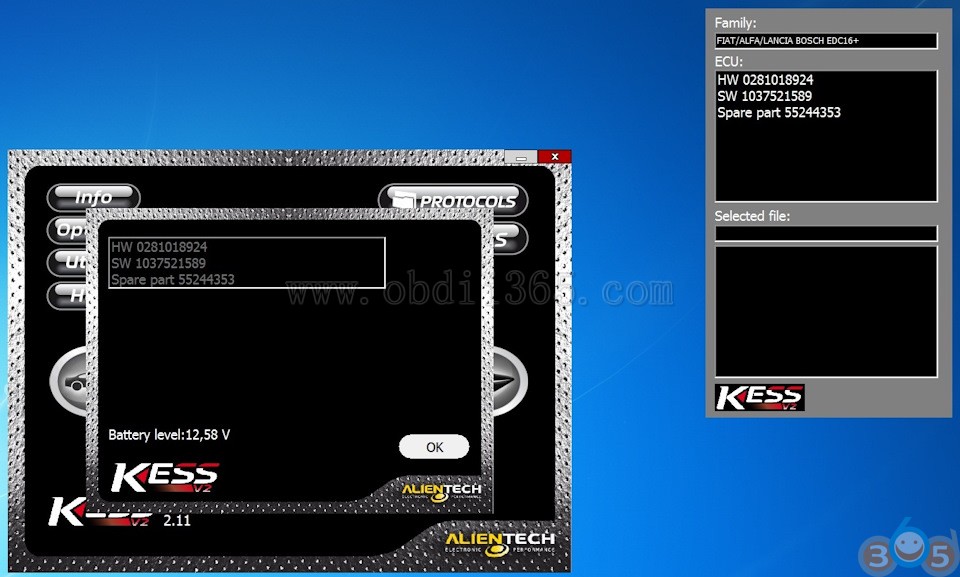

ECU identification:

kessv-2-fiat-ducato-delete-dpf-egr-3

HW: 0281018924
SW: 103752158
Spare: 55244353
Now we will read the calibrations, press reading:

kessv-2-fiat-ducato-delete-dpf-egr-4

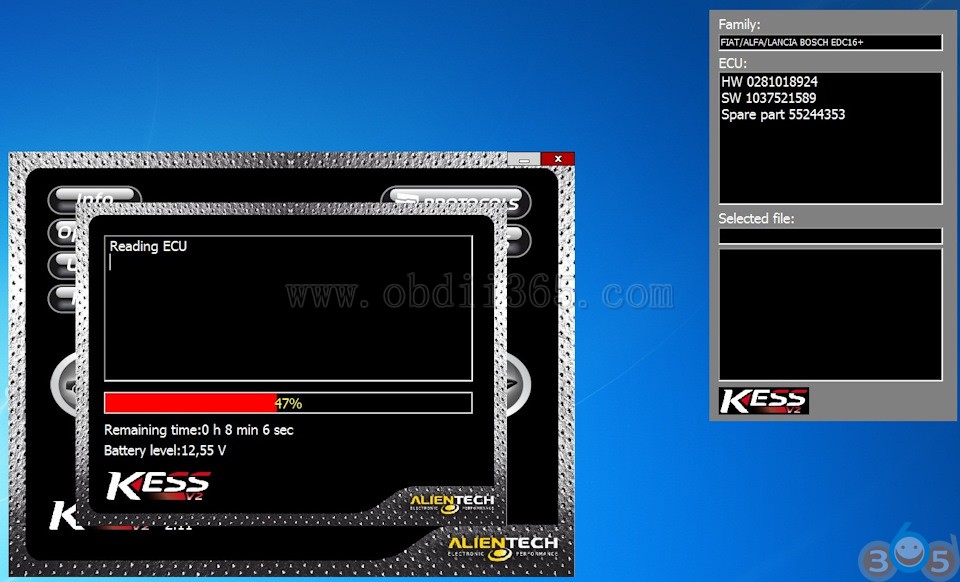

Almost half read:

kessv-2-fiat-ducato-delete-dpf-egr-5

Almost everything was considered:

kessv-2-fiat-ducato-delete-dpf-egr-6

Turn off the ignition:

kessv-2-fiat-ducato-delete-dpf-egr-7

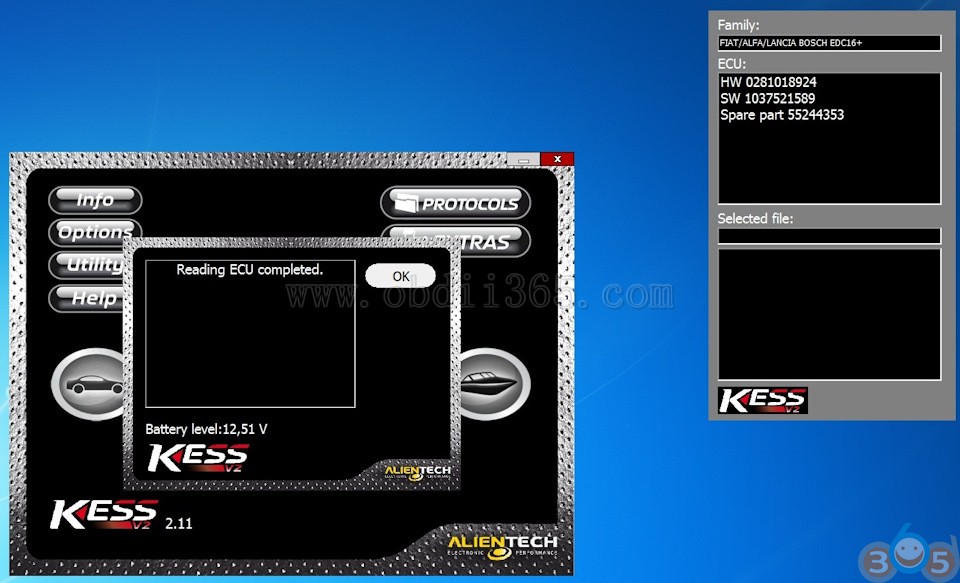

Calibrations were counted as 15min, the correct size was 2Mb:

kessv-2-fiat-ducato-delete-dpf-egr-8
The resulting file 0281018924_1037521589_55244353.bin is sent to a verified calibrator, we pay as much as required, and we get the answer to the correct modified file for our tasks.
Now, in the Ksuite program, select and write the new file:
kessv-2-fiat-ducato-delete-dpf-egr-9
Almost half signed up:
kessv-2-fiat-ducato-delete-dpf-egr-10
Almost everything is recorded:
kessv-2-fiat-ducato-delete-dpf-egr-11
Calibrations were recorded in 2 minutes:
kessv-2-fiat-ducato-delete-dpf-egr-12
Now you need to remove any errors that may have occurred. Choose Del Errors :
kessv-2-fiat-ducato-delete-dpf-egr-13
Run the process:
kessv-2-fiat-ducato-delete-dpf-egr-14
The task is completed, you can turn off kess v2 software:

kessv-2-fiat-ducato-delete-dpf-egr-15
Current car mileage 158261km:
kessv-2-fiat-ducato-delete-dpf-egr-16

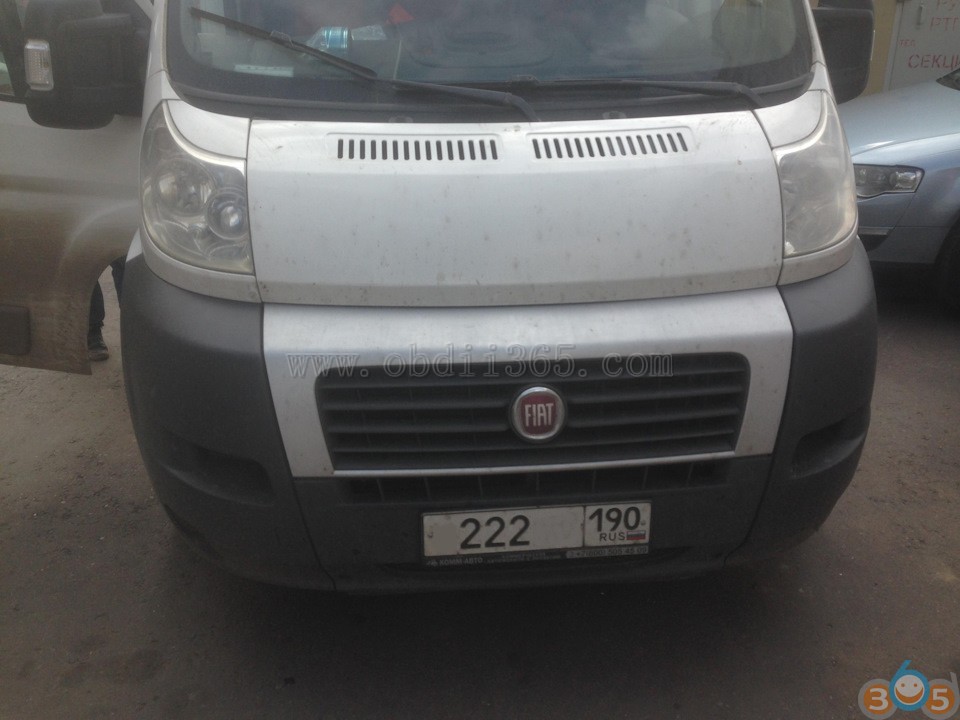

The Fiat Experiment:
kessv-2-fiat-ducato-delete-dpf-egr-17
It became definitely better. DPF will be cut , the EGR is muffled and the most important thing is to clean the intake manifold.
Everything works perfectly.
All good!
