2018 Kess V2 Red PCB Rework Pictures

I have made a Kess V2 new version of the original rework picture from Fantomel. I thought it would be good to have a update version with some more part nr. I take no credit or responsibility for this info and it’s only for guidance.
kess-v2-pcb-rework-1
kess-v2-pcb-rework-2
kess-v2-pcb-rework-3
kess-v2-pcb-rework-4
kess-v2-pcb-rework-5
EDIT 24.08.18 Added one more component nr. 19 (Diode) Thx to eurmod!
To make life easier for collecting components for Kess V2 v5.017 red pcb rework
kess-v2-pcb-rework-componenets-1
kess-v2-pcb-rework-componenets-2
kess-v2-pcb-rework-componenets-3
IMPORTANT: No one hold any responsibility of what you’ll do with your Kess.
If you’re not equipped with rich knowledge and rework experience,
Pls get a kess v2 reworked already
kess-v2-rework-pcb-1
kess-v2-rework-pcb-2

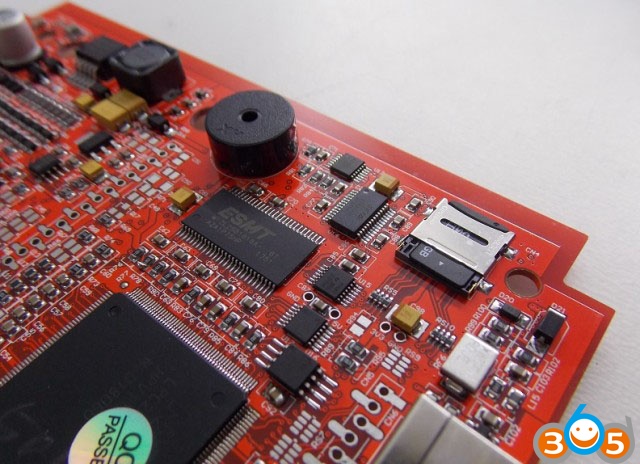

kess-v2-rework-pcb-3

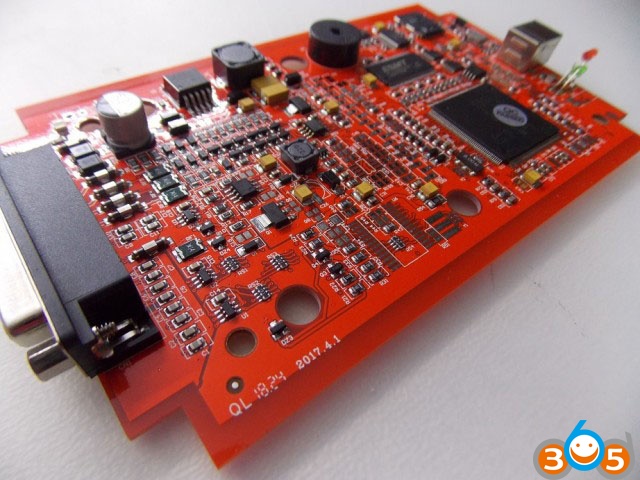

kess-v2-rework-pcb-4
kess-v2-rework-pcb-5
PCB Feature:
1.the left upper corner and the lower right corner notch size is not the same
2.Extra buzzer
3.WFs = Infineon, BCR112 NPN Digital Transistor
4.27E = ON Semiconductor NUP2105LT1G
5.6DW = NXP BC817,215 NPN Bipolar Transistor
6.A6c =MMUN2113LT1G / MMUN2113LT3G
7.K5B = BC807-25-7-F PNP Bipolar Transistor
8.Using imported Japanese Murata filter NFE61PT472C1H9L
Note: Kess V2 firmware 3.0994.0244.0365.017, 5.028 work with the same hardware.
Only firmware + software are upgraded.
