Benz Sprinter 2010 EZS Pinouts to Xprog and R270

Purpose:

Do odometer correction on 2010 Sprinter Van. I need the soldering points for the ezs/eis.I can’t actually see the mask but after extensive reading every points to them having the 0L01Y mask. Which programmer will work?

Solution:

R260 original ok

clone rosfar,ok

xprog clone ok

R270 ok

Use xprog the pinouts for xprog is what posted below. i always do this with xprog and never had a problem just select in device options ” read and verify ” make sure it is NOT selected and you should be ok , use the BDM adaptor with xprog for it

here is the settings i use and you know the story always keep backup of the files you read

xprog-sprinter-ezs-1

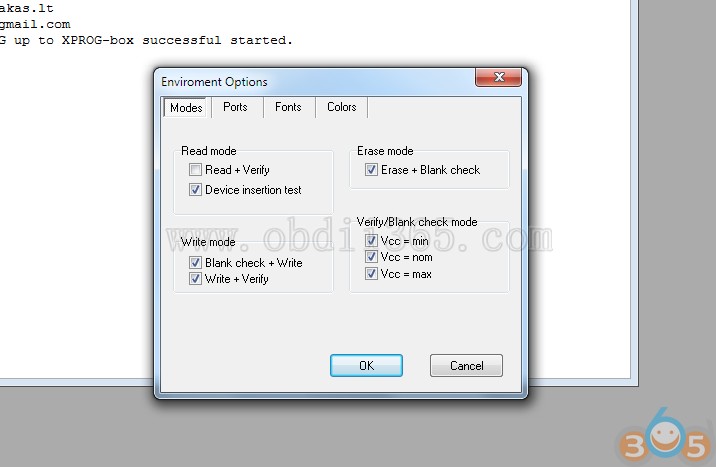

xprog-sprinter-ezs-2

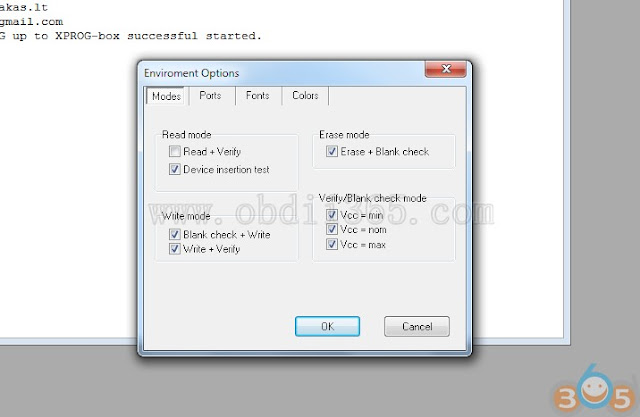

xprog-sprinter-ezs-3

BTW:

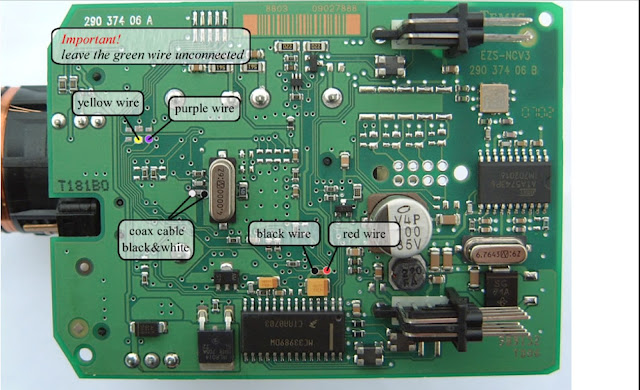

Here are R270 wires:

2- +5v

24,26- ground

7- reset

19- background

r270-sprinter-ezs-1

http://xprogbox.blogspot.com/
