M35160 Mileage Correction with Yanhua M35XXX Emulator

Yanhua Tech released a new 35160/35080 Programming Emulator to adjust mileage for following EEPROM models:
M35080/M35080-3/M35080-6/M35080V6/M35080VP/080DOWQ/080DOWT/160DOWQ/160DOWT/35160WT EEPROM.
Note: The simulator is stand-alone. No need to work with other software program or hardware.
yanhua-m35xxx-emulator
Here’s the guide to change mileage on M35160 eeprom, same operation goes to M35xxx series.
Solder the 35XXX chip on the dash meter to the specificed location of the simulator
Pay attention to the chip location.
change-mileage-m35xxx-with-yanhua-emulator-1



change-mileage-m35xxx-with-yanhua-emulator-2

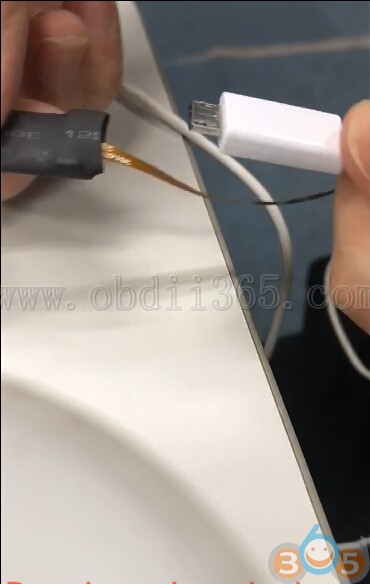

Connect the Yanhua emulator to the Mini USB cable and connect the usb cable with computer via USB port
change-mileage-m35xxx-with-yanhua-emulator-3

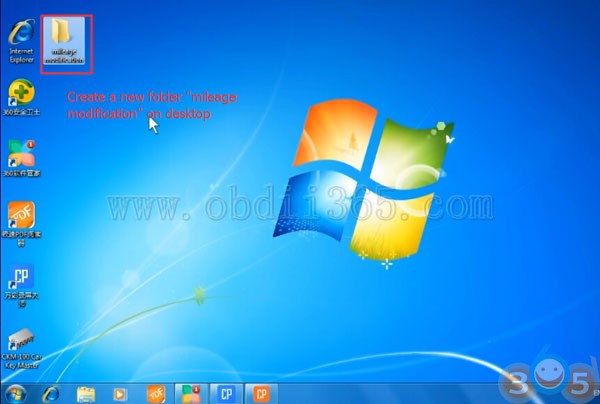

Create a new folder “mileage modification” on desktop
change-mileage-m35xxx-with-yanhua-emulator-4
Open M35xxx memory U disk
change-mileage-m35xxx-with-yanhua-emulator-5

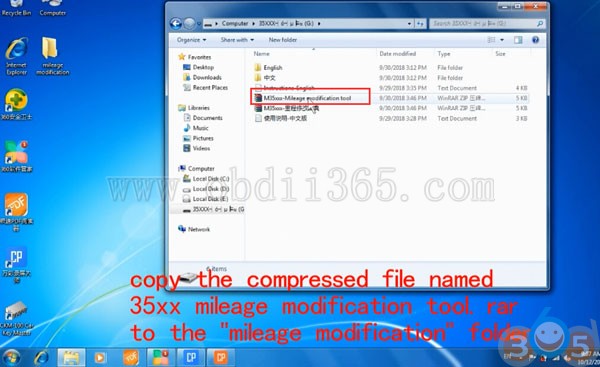

Copy “M35xxx-Mileage modification tool” zip file and paste it to “mileage modification” folder on desktop
Then extract the file to current folder
change-mileage-m35xxx-with-yanhua-emulator-6
change-mileage-m35xxx-with-yanhua-emulator-7
Open “English” folder on U disk
Cut and paste “35160 original” file to “mileage modification” folder
change-mileage-m35xxx-with-yanhua-emulator-8
Then open with M35xxx-Mileage modification tool by simply dragging the file to it
change-mileage-m35xxx-with-yanhua-emulator-9

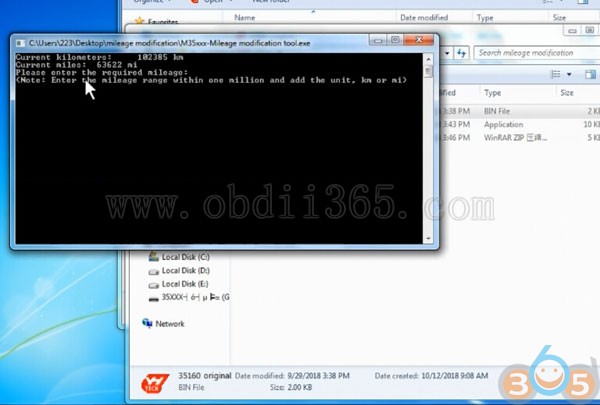

Then the prompt program will show the current odometer information,i.e  current mileage: 102385km
change-mileage-m35xxx-with-yanhua-emulator-10
Enter the mileage you desired (within one million) and add a unit km (kilometer) or mi (mile), i.e 1234mi
change-mileage-m35xxx-with-yanhua-emulator-11
There will be a new file “35160-1234mi” generated on “mileage modification” folder
change-mileage-m35xxx-with-yanhua-emulator-12
Delete the “35xxx simulated” file on U disk
change-mileage-m35xxx-with-yanhua-emulator-13
Cut and paste the new generated data file “35160-1234mi”  from “mileage modification” folder to U disk
change-mileage-m35xxx-with-yanhua-emulator-5
change-mileage-m35xxx-with-yanhua-emulator-15



change-mileage-m35xxx-with-yanhua-emulator-16



change-mileage-m35xxx-with-yanhua-emulator-17
Then open the M35xxx memory U disk again
The new data file “35160-1234mi” will be automatically renamed to “35160 simulated”
change-mileage-m35xxx-with-yanhua-emulator-18

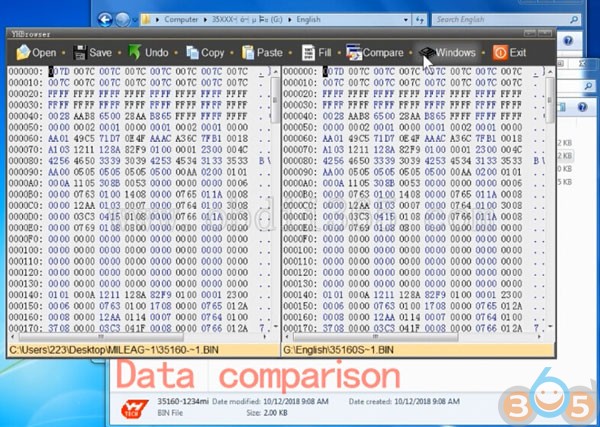

Open “35160 simulated” file in U disk and open “35160-1234mi” mileage modification folder to make a data comparison
change-mileage-m35xxx-with-yanhua-emulator-19
change-mileage-m35xxx-with-yanhua-emulator-20
If the data is the same. The emulator operation is successfully completed. Mileage correction is done.
change-mileage-m35xxx-with-yanhua-emulator-21
Finally solder the simulator to the instrument.
