How to use integrated interface board for Yanhua Mini ACDP?

Yanhua Tech developed new Mini ACDP integrated interface boards for DME N13 N20 N55 B48 ISN reading and BMW FEM/BDC bench programming.
What’s the benefits of the integrated boards?
Simple operation!
Plug and use it directly!
Avoid incorrect connection!
Safe and reliable connection!
yanhua-dme-integrated interface board
First of all, check ACDP old DME ISN adapter connection below
Disadvantages:
1. Need to follow the wiring diagram
2.Takes time, less efficient
3.Will cause incorrect connection
yanhua-acdp-old-dme-connection
Now with the new integrated  board, it is just plug-and-play, check pictures below
Easy and fast
yanhua-acdp-n55-integrated-interface-board-1



yanhua-acdp-n55-integrated-interface-board-2

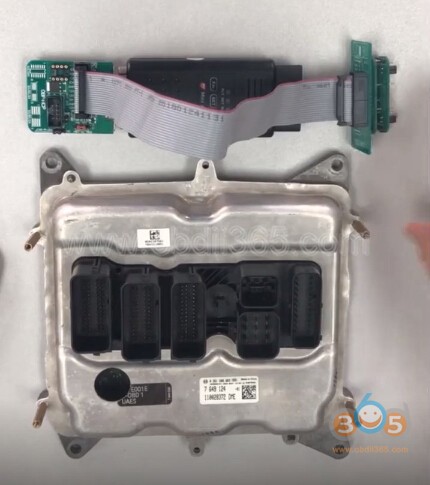

yanhua-acdp-n13-n20-integrated-interface-board-1



yanhua-acdp-n13-n20-integrated-interface-board-2
Newly updated!! Reading B48 DME ISN via OBD or on Bench!
yanhua-acdp-b48-integrated-interface-board-1



yanhua-acdp-b48-integrated-interface-board-2



yanhua-acdp-b48-integrated-interface-board-3

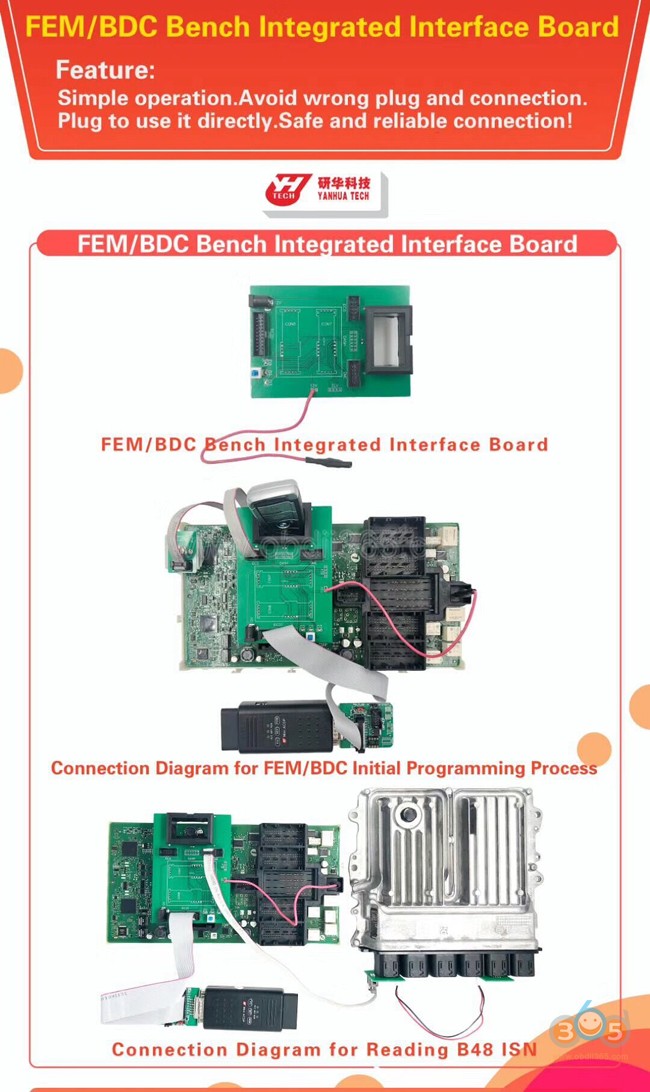

yanhua-acdp-fem-bdc-integrated-interface-board-1
yanhua-acdp-fem-bdc-integrated-interface-board-2



yanhua-acdp-fem-bdc-integrated-interface-board-3



yanhua-acdp-fem-bdc-integrated-interface-board-4
