Kess V2 Master ECU Tuning Kit

Now make the J-Link connection to Carprog programmer according to the scheme and with the least possible piece of wire that is important

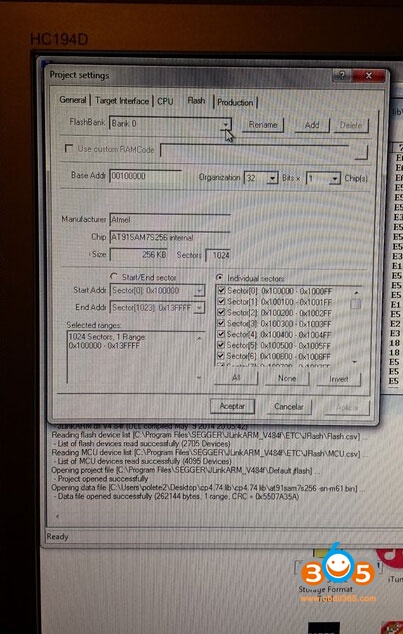

We open the program to go to options / project settings and put it all as the pictures

now file / open data file and select our new firmware

finally we select target / connect / program.

Step 1:

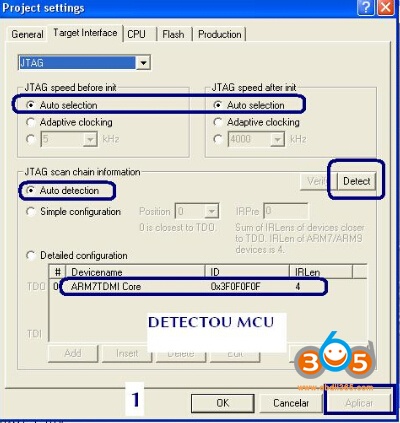

jtag speed before/after in: auto selection

jtag scan chain information: auto detection

deleted info configuration: ARM7TDMI core ….

APPLY

Step 2:

device: atmel …..

check core id

APPLY

Step 3:

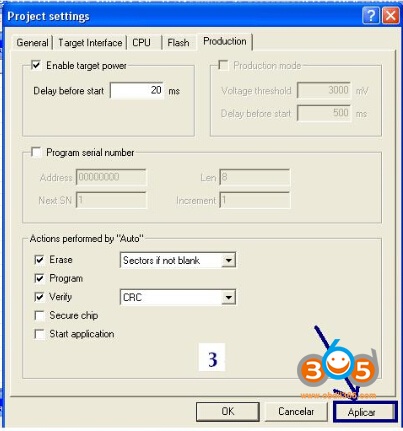

Enable target power

APPLY

Step 4:

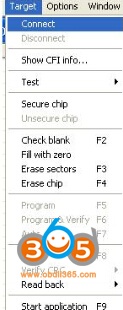

Select Target – connect

Step 5:

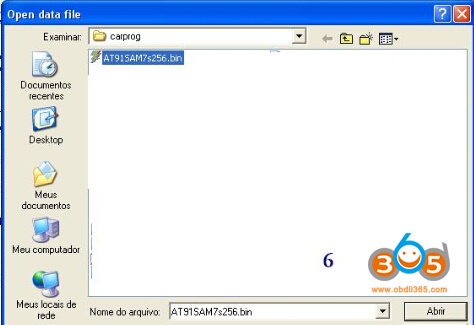

Select File – open data file…

Step 6:

Select Target and go to Program

Done!
