Test report: Autel MaxiIM IM608 is confirmed to read out EEPROM M95128 from the BMW FEM system.

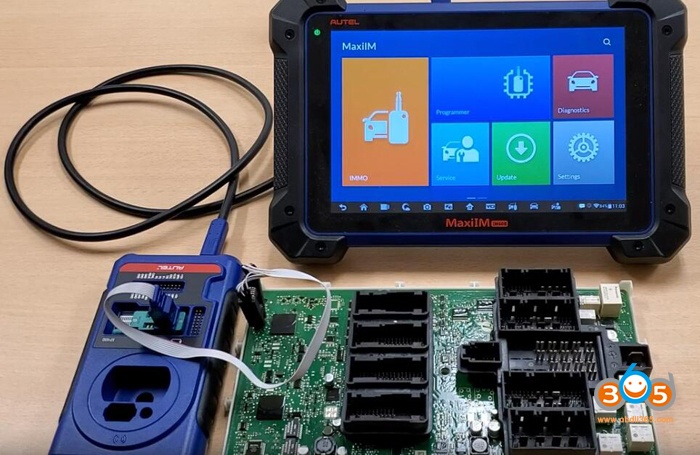

Connection:
All connection should be good before data reading
Menu:
In Autel IM608 software, pls go to IMMOBILIZER
then accept agreement

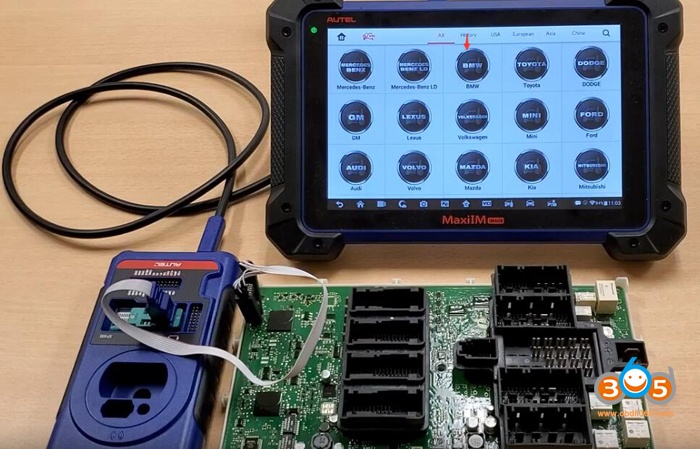

Select BMW – SYSTEM SELECTION – IMMOBILIZER – FEM/BDC IMMOBILIZER
Then select EEPROM operation – Diagram
Diagram in Autel Im608:
FEM M95128:
EEPROM position on the FEM system
BDC M95256:
EEPROM position on the BDC system
Pin 1 position on EEPROM

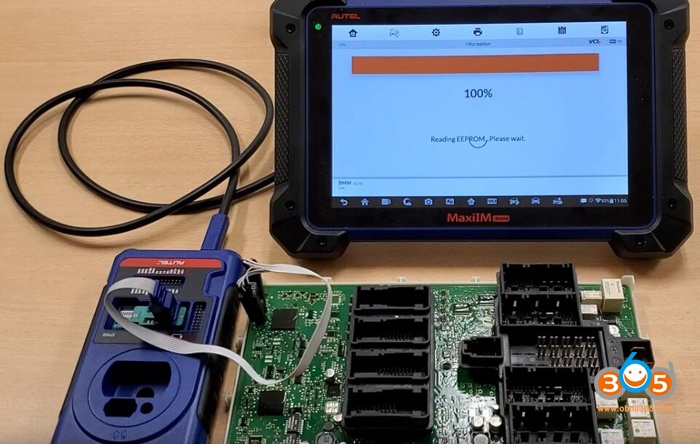

Process of reading eerpom:
Read M95128 EEPROM
Result:
MaxiIM IM608 read EEPROM 95128 successfully!
