How to Install Xprog M V6.12 Software?

Latest version Xprog V6.12 box programmer software can be downloaded here for free:
Software version: V6.12, Firmware: V4.4
Password: fxo5qz
or download from google drive here
https://drive.google.com/open?id=1kJQot_4d_m3i4RlFCW00Nh9O3dZbgm4L
xprog-new-license
What’s new in xprog 6.12?
xprog-612-pcb-1



xprog-612-pcb-2



xprog-612-pcb-3



xprog-612-pcb-4
How to install Xprog v6.12 software?
  • Operating system: WinXP/Win7 32bit and 64 bit
  • Disconnect the internet. Disable anti-virus program.
  • With USB Dongle, No need activation
Step 1: Install Adobe Reader
Open software CD or download software via links
install-xprog-v612-software-1
Copy and paste all files from CD to desktop
install-xprog-v612-software-2
Open 6.12 AdbeRdr11000_mui_Std folder and install AcroRead setup
Press Next
install-xprog-v612-software-3
Select Manually check for and install updates and press Install
Installing Adobe Reader XI
Adobe setup installation completed.
Press Finish.
Delete 6.12 AdbeRdr11000_mui_Std folder on desktop
Step 2: Merge registry
Cut English 6.12 software folder from desktop and paste to C://
install-xprog-v612-software-4
Open English 6.12 software folder
install-xprog-v612-software-5
Send XprogDesktop to desktop
install-xprog-v612-software-6
Merge 6.12registry
Confirm registry information by pressing Yes
install-xprog-v612-software-7
Mergen registry successfully
Delete Chinese software 6.12 folder, installation video and Adobe Reader XI on desktop
Step 3: Install xprog driver
Connect xprog v6.12 and usb dongle with computer
install-xprog-v612-software-8

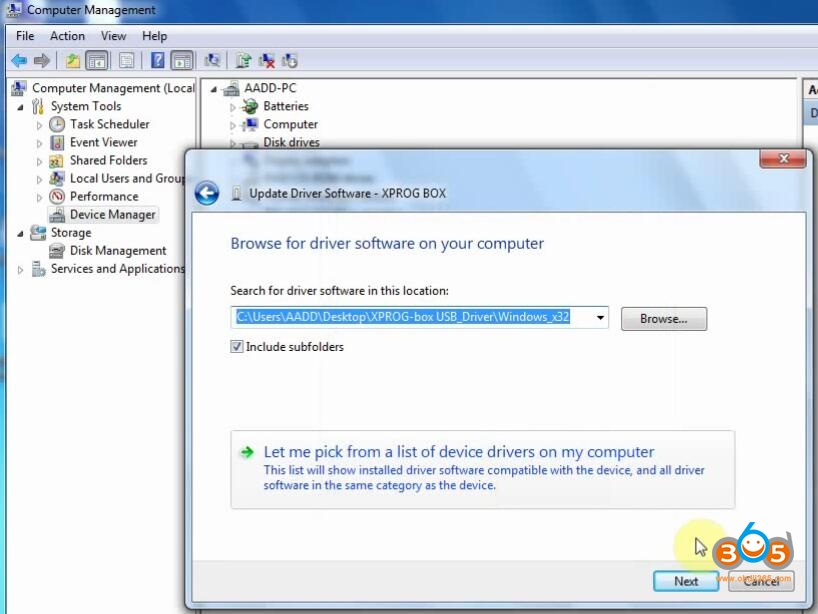

Open Computer Management->Device Manager->Other devices->Xprog Box, right click and select Update Driver Software
install-xprog-v612-software-9
Choose Browse for driver software on your computer
Choose driver software location (from desktop driver folder)
Press Next
install-xprog-v612-software-10
install-xprog-v612-software-11
Install driver software success and COM Port was set to 6
(* If fail to uninstall device driver, make sure you select the correct driver folder and system (32bit or 64bit).
Step 4: Run software
Run XprogDesktop.exe shortcut on desktop as Administrator
Accept license agreement
install-xprog-v612-software-12



Check device information and run xprog software



install-xprog-v612-software-13



install-xprog-v612-software-14
