Renolink OBD2 Renault V1.87 vs. V1.52

Renlink OBD2 Renault USB link 1.52 and 1.87 which worth buying?
Language Comparison:
Renolink v1.52 crack supports English only.
V1.87 Renolink Renault supports both English and French.
System Comparison:
Same, both can be installed on WinXP, Win7
Function Comparison:
They all perform following functions:
– Eprom read / write
– ECU Resetting
– Clear Crash Airbag
– Airbag reset
– Airbag Virginize
Keys
– KEY Programming TDB (cluster)
– Indicator Programming
– ECM Programming
– UCH Programming
– EPS Virginizer
– EPS Resetting
The difference is that V1.87 software adds many new features.

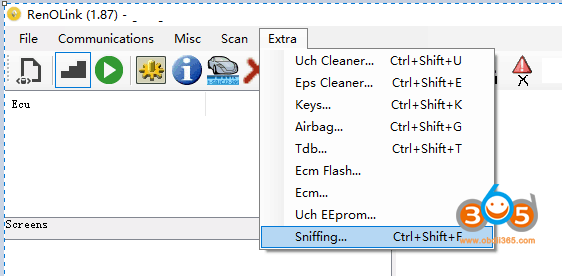

renolink-v187-software-1
What’s new in Renolink V1.87 software?
  • Software Database for Renolink is 2019.
  • read/write eeprom and read/write flash for dashboard Dacia Logan2 / Dacia Sandero2 / Dacia Lodgy / Dacia Docker / Dacia Duster ph2 from years 2013-2014 and 2014-2017
  • Read/write flash, eeprom and km were added for dashboard (VDO) Mégane 3 and Fluence 2015+
  • Read and write flash, eeprom and km for the Laguna 3 dashboard.
  • Read/write km – read/write eeprom – read/write flash for dashboard Renault Fluence. Also was added key programming UCH BMT Sagem for Dacia Solenza, Dacia Supernova, Renault Twingo, Renault Kangoo, Renault Master (years 1998-2003)
  • Read/write km for dashboard Renault Modus
    Read/write km, read/write eeprom for dashboard Koleos
  • Was added into program : KEY PROG
    * key programming for Dacia Logan 2
    * key programming for Dacia Sandero 2
    * key programming for Dacia Duster ph 2
    * key programming for Dacia Lodgy
    * key programming for Dacia Dokker
    * key programming for Renault Clio Symbol 3
In this version was implemented:
– reading of PIN code for HFM Renault Clio 4 and Renault Captur 2016+, a valid Card is required to teach HFM, because the procedure virginses it.
Also a new database from december 2019 was added.
this version we added cards programming for Clio4 (2012-2015), also a new database from July 2019
Was added into this update:
deletion immo code from the power steering (DAE) in Dacia Duster ph3.
the encoding is automatic – at the first ignition.
Was added: learn ecu from DACIA Logan 2 / DACIA Sandero / DACIA Lodgy / DACIA Docker / DACIA Duster ph2
This update is for well known problem with ECM V42 )
V1.87 Renolink Features:

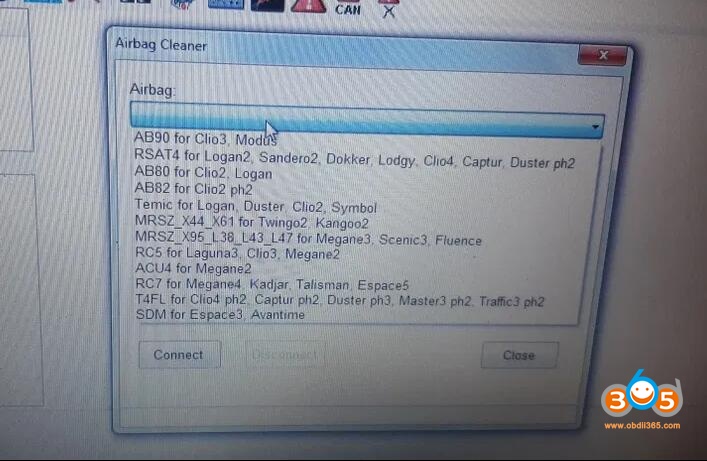

Clear Crash Airbag
Read/write eeprom
EPS Virginizer
ECM
UCH
Keys (news Dacia Duster Docker Logan new)

Card Laguna 3 / Megane 3
TDB (cluster) and much more

All functions work by OBD connector.
renolink-v187-software-2

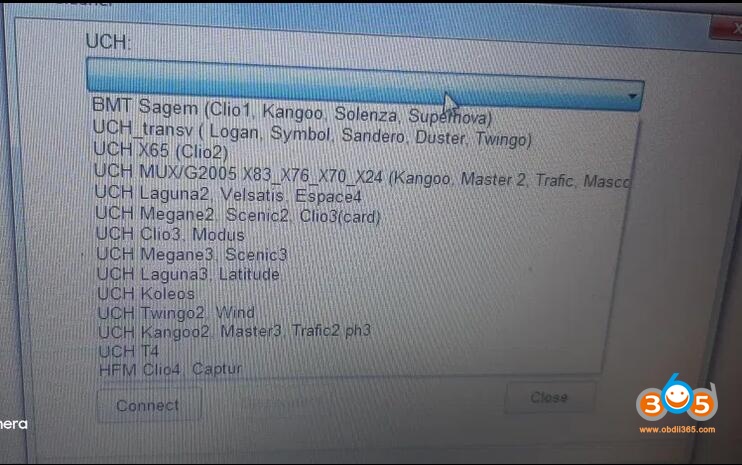

renolink-v187-software-3

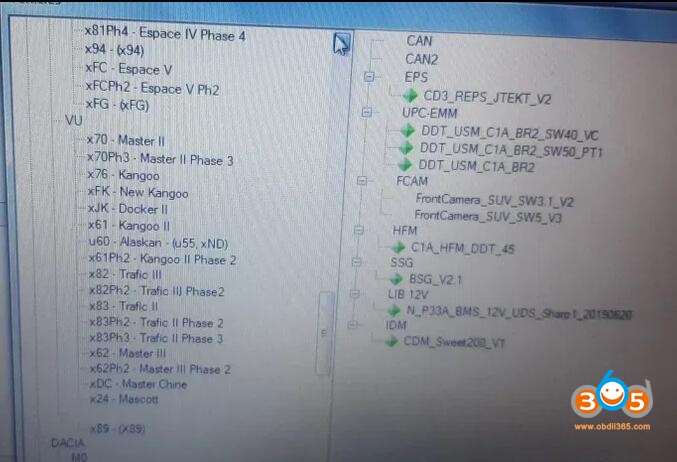

renolink-v187-software-4
PCB Comparison

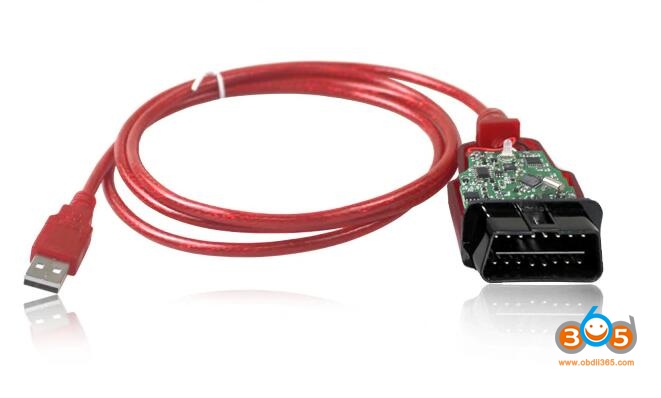

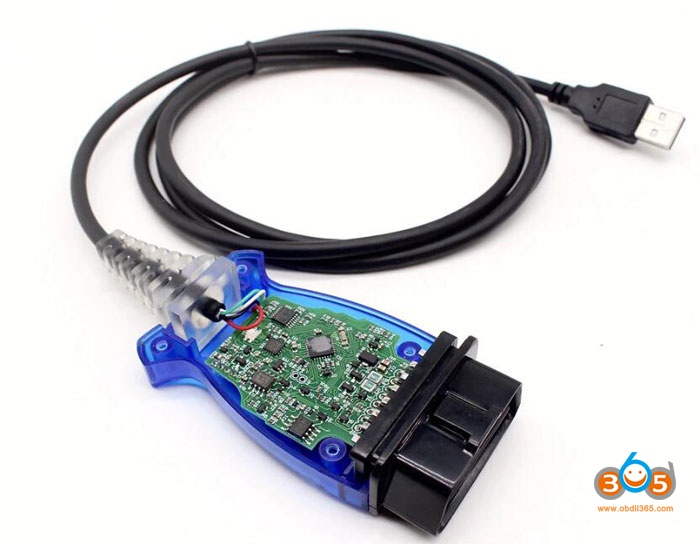

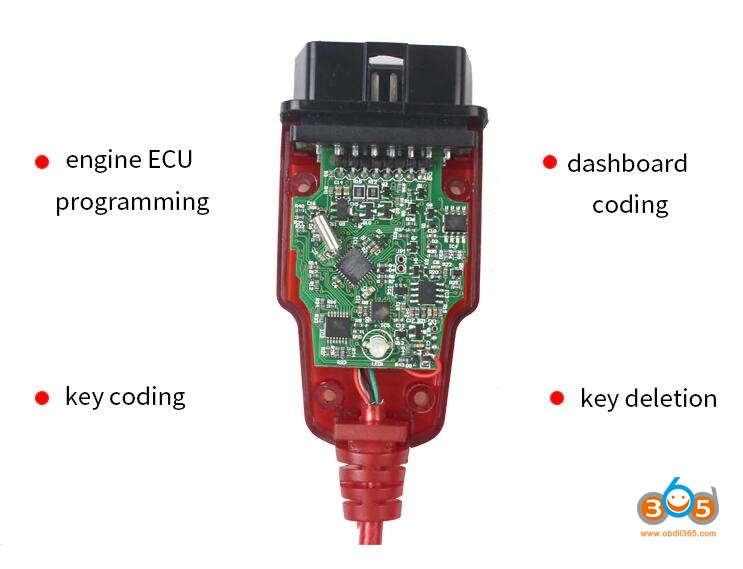

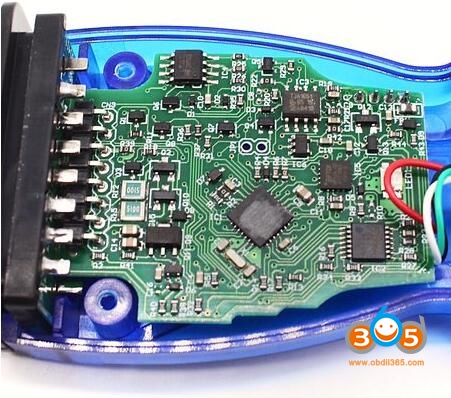

OBDlink-sxUSB with Renolink 1.52
There are 2 versions of  OBDLink USB interface with green board:  both blue cable and red cable come with 1.52 software
1)
renolink-v152-greed-pcb-1



renolink-v152-greed-pcb-2



renolink-v152-greed-pcb-3
2)
renolink-v152-greed-pcb-4



renolink-v152-greed-pcb-5

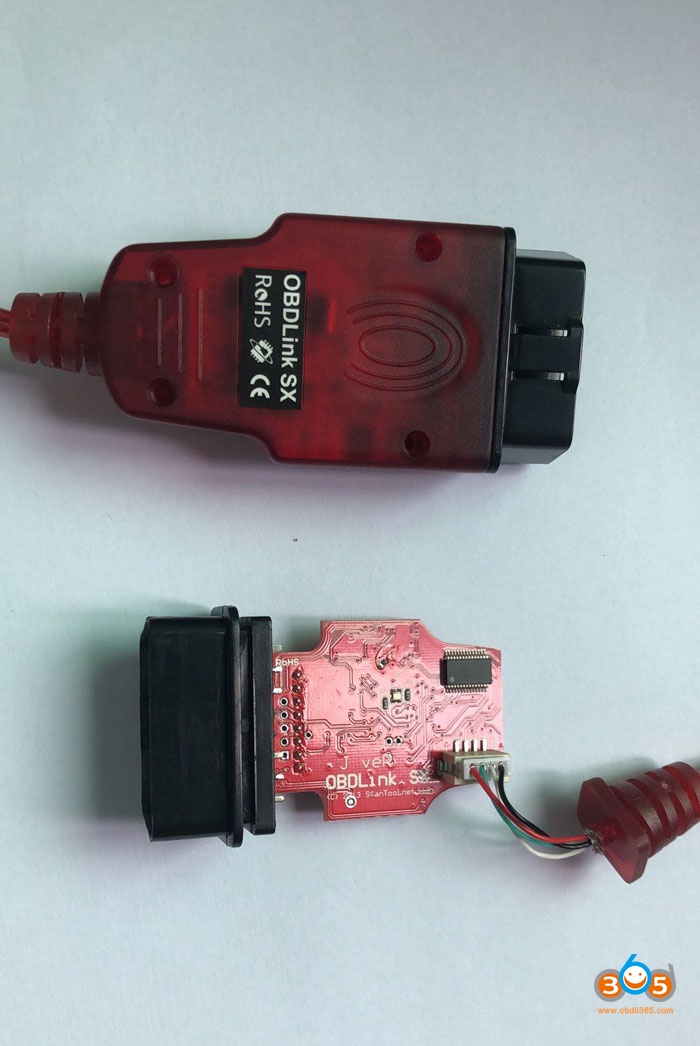

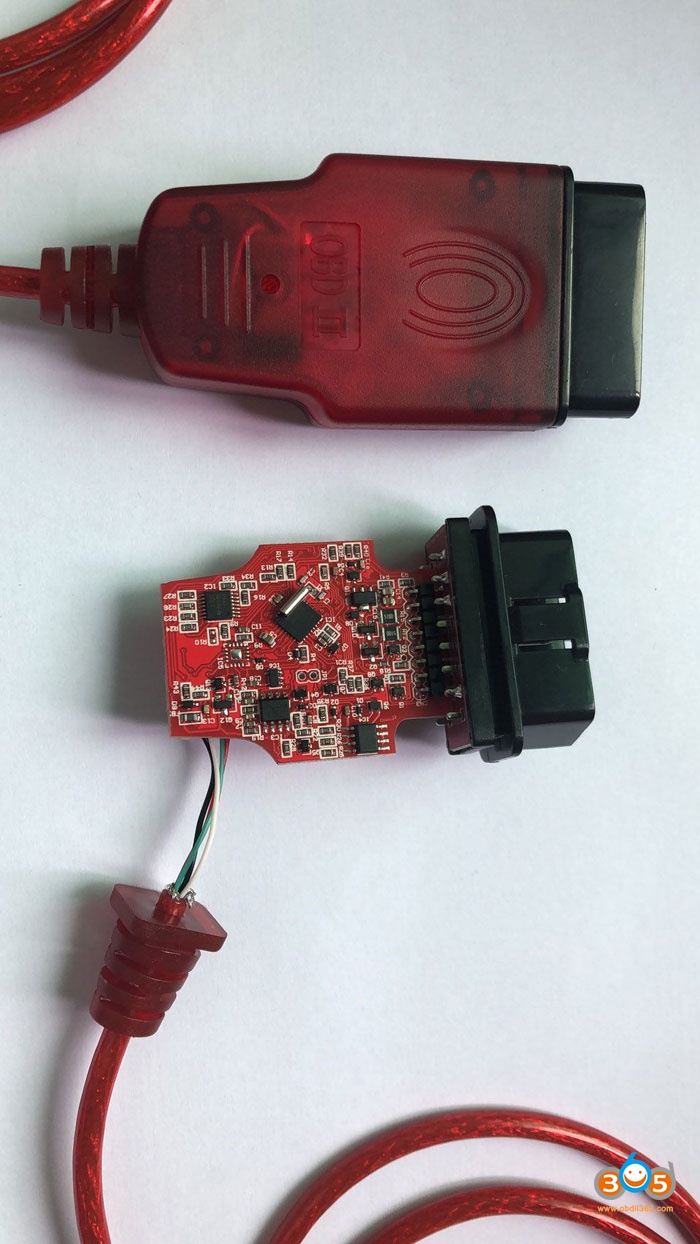

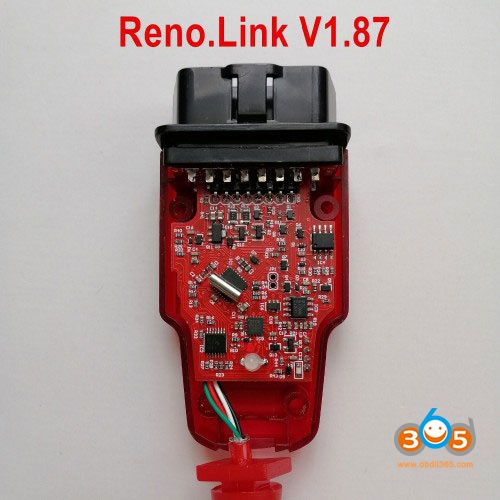

OBDlink-sxUSB with Renolink 1.87
red usb interface with better quality red board
renolink-v187-red-pcb-1



renolink-v187-red-pcb-2



renolink-v187-red-pcb-3
* Renolink 1.52 and 1.87 uses different hardware. Cannot update software 1.52 to 1.87 directly.
Stability Comparison:
Renolink 1.52 blue case green board < Renolink 1.52 red case with green board < Renolink 1.87 red case with red board
Activation Comparison:
Both crack version. Does not require activation. But need to install driver.
